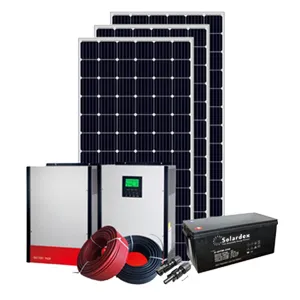

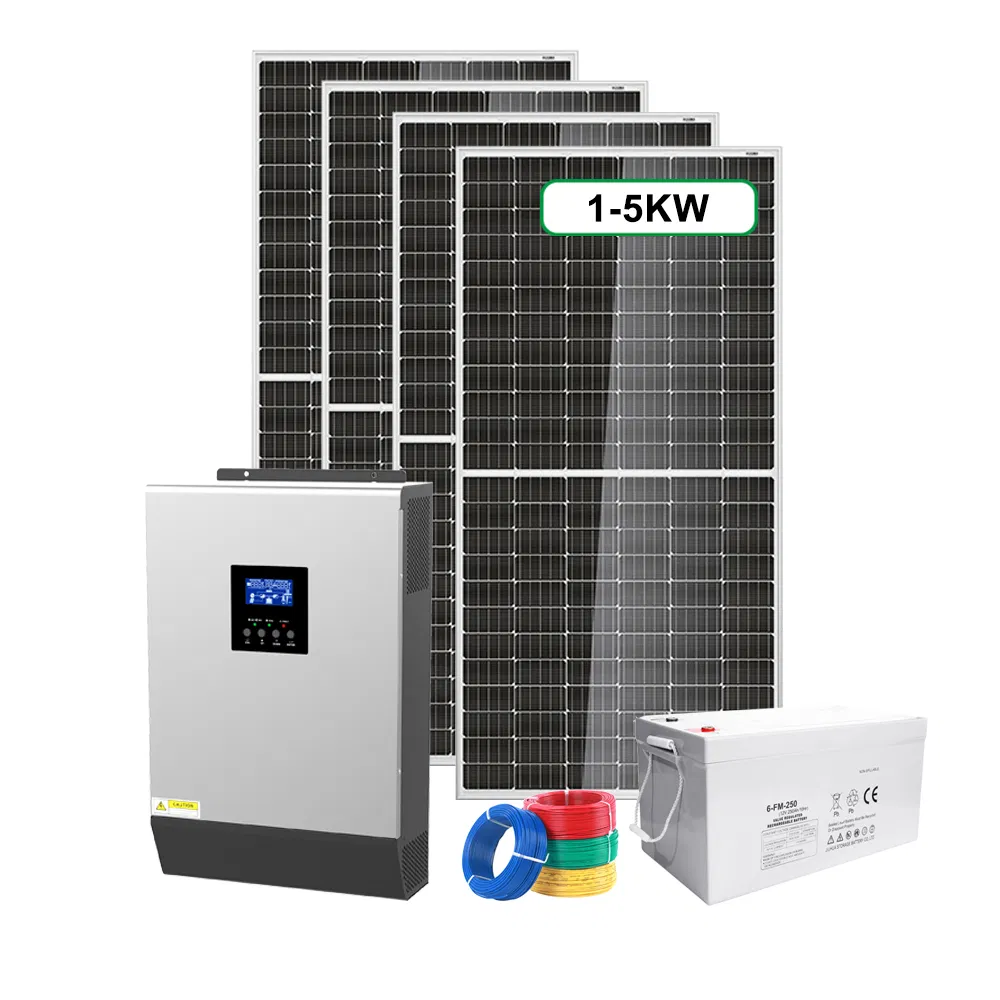

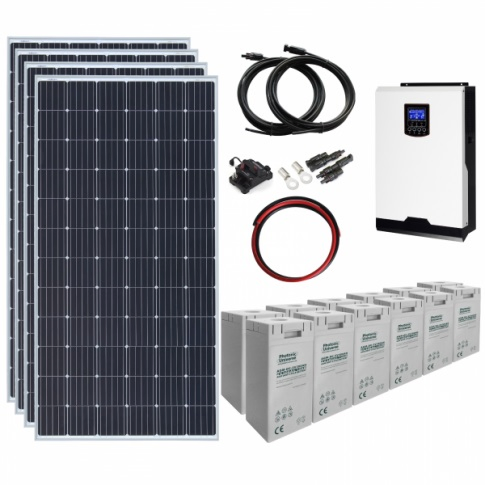

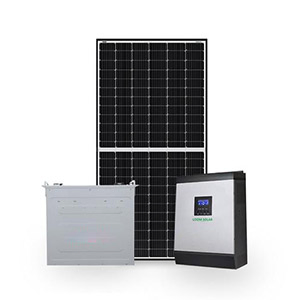

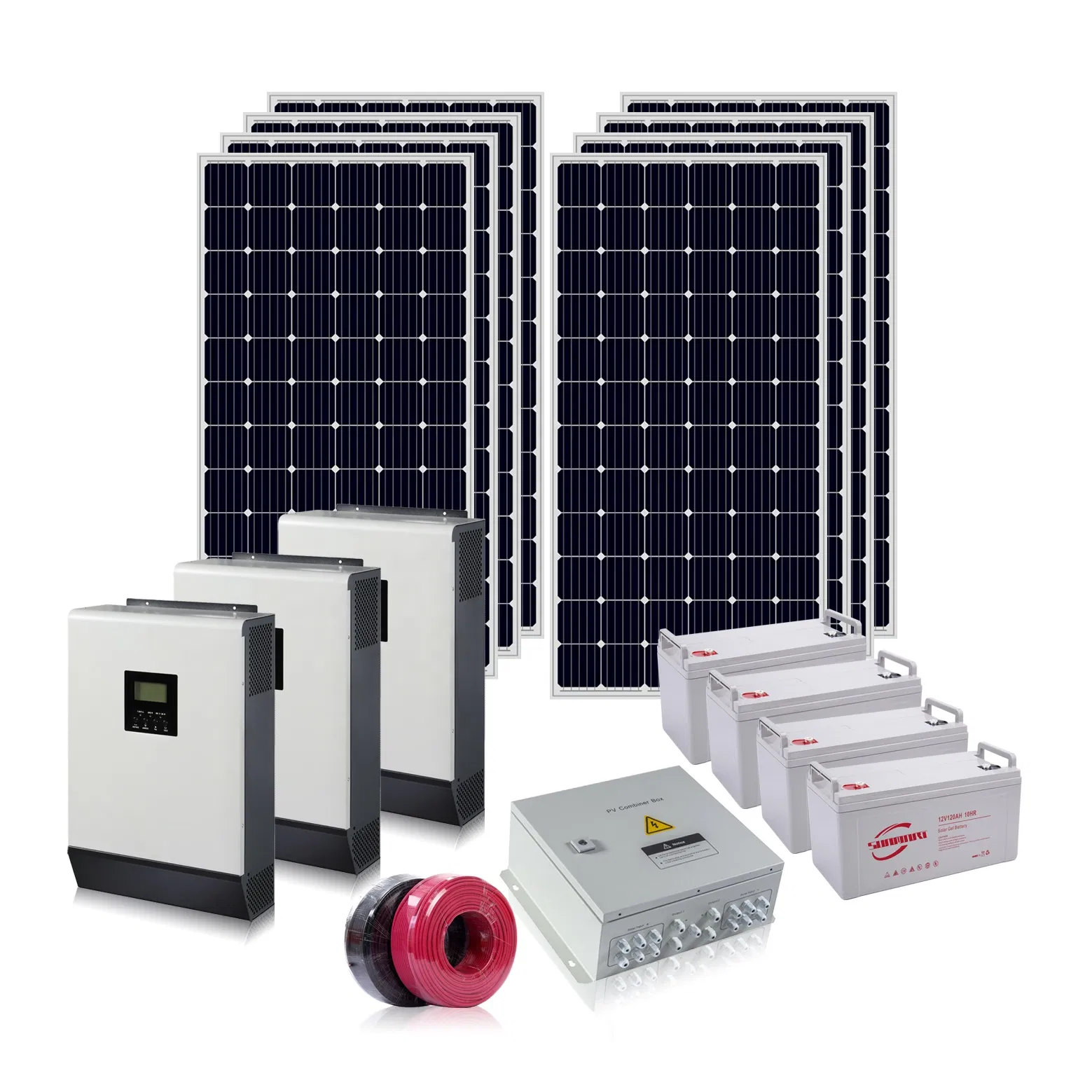

Popular Solar Panel Photovoltaic System - All-in-One Solution for Home and Commercial Use

i

Basic Information

Product NameMono Solar Panel

TypeHalf Cell N Type Mono PV Module

Number of Cells144PCS

Cell Size78mm*166mm

MaterialMonocrystalline Silicon

Specification550w, 2278x1134x35mm

ApplicationIndustrial

CertificationISO, CE, Rosh

Junction BoxIP68

Front GlassHigh Transparency, Coated Tempered Glass

FrameAnodized Aluminum Alloy

Weight28kgs

Package Size1.00cm * 1.00cm * 1.00cm

Package Weight1.000kg

P

Detailed Photos

S

Product Parameters

Solar Panel Price 540W 545W 550W Mono Half Cell Solar Power double glass solar modules tier 1

Rated Power -Pmax (W)	530w	535w	540w	545w	550w
Open Circuit Voltage -Voc (V)	49.2	49.35	49.51	49.69	49.88
Short Circuit Current -Isc (A)	13.68	13.75	13.82	13.89	13.97
Working Voltage -Vpm (V)	41.53	41.82	42.12	42.41	42.71
Working Current -Ipm (A)	12.76	12.79	12.82	12.85	12.88
Module Efficiency -η (%)	20.51	20.7	20.89	21.09	21.28
STC: Irradiance 1000W/square meter Cell Temperature 25°C Air Mass AM 1.5

L

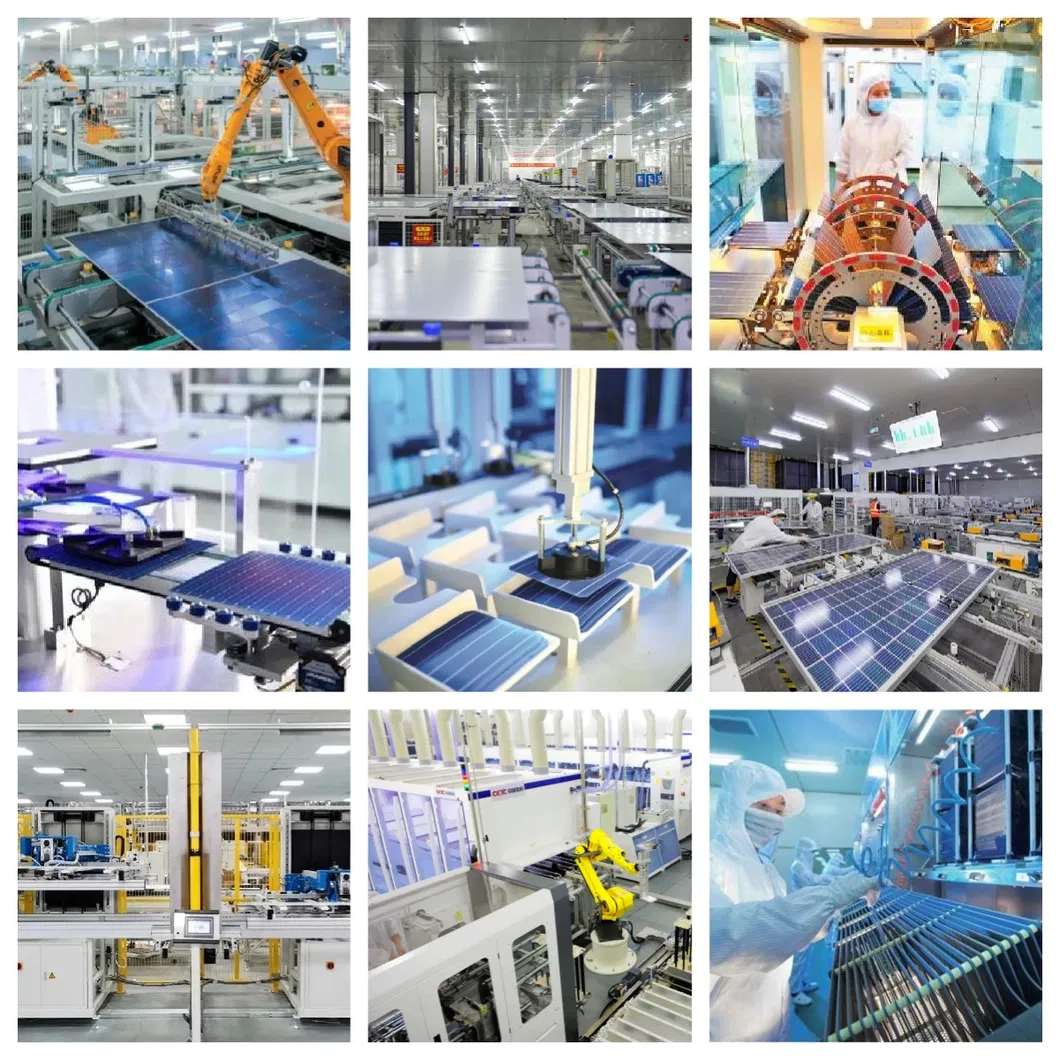

Production Line

We are an industry-leading solar energy company with a current high-efficiency module production capacity of 10GW. By designing, manufacturing and supplying high-efficiency monocrystalline solar modules, we provide outstanding photovoltaic products, system solutions and related services to customers around the world. Committed to creating value for customers and contributing to the promotion of global carbon goals.

W

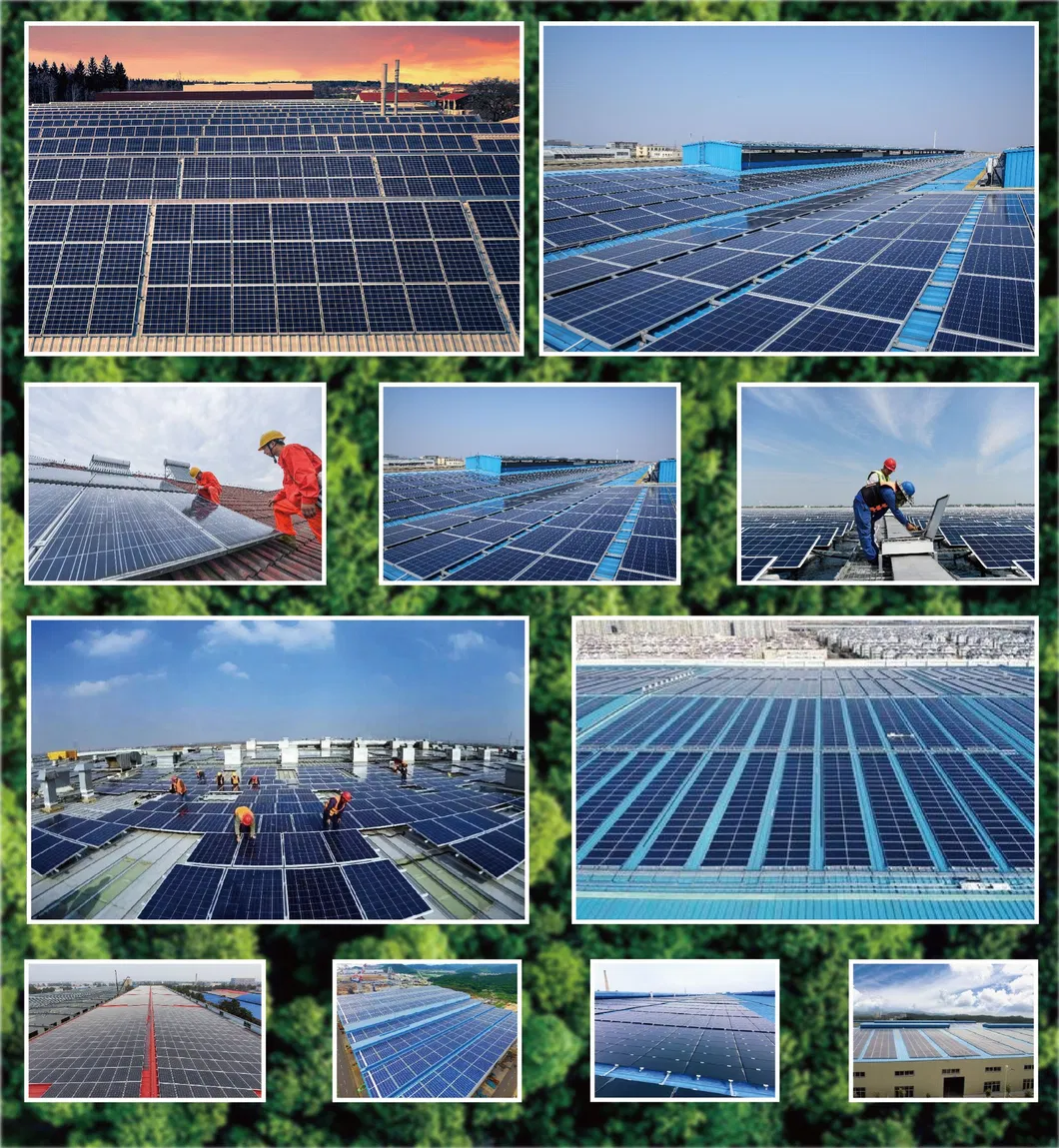

Photovoltaic Projects

C

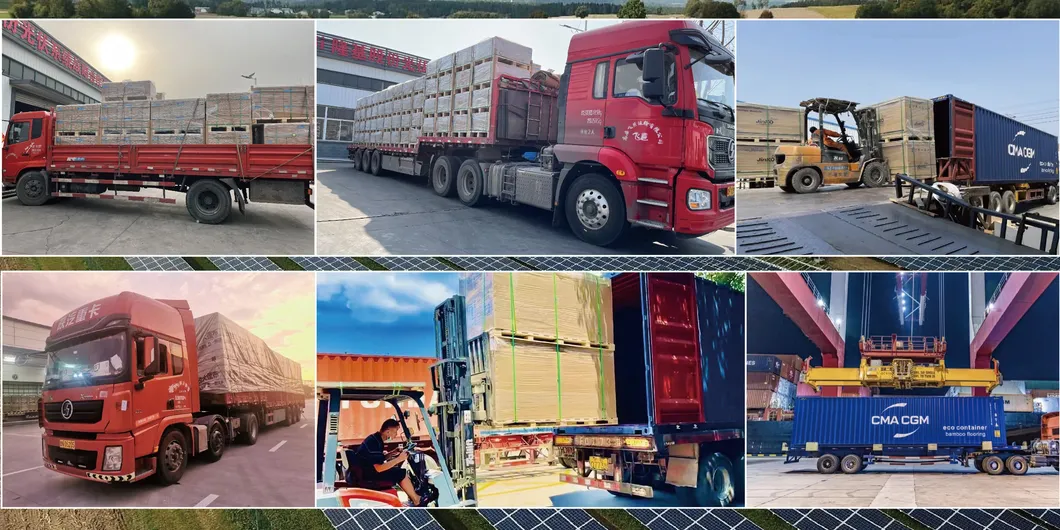

Certifications & Shipping

T

Our Team

?

FAQ

Q1: What is the typical lead time for orders? A1: For requirements under 200kW, the lead time is approximately 10 days. For needs equal to or greater than 200kW, the schedule will be negotiated based on current capacity.

Q2: What payment methods are accepted? A2: We accept 100% TT, or a maximum of 30% TT in advance with the remaining 70% TT due upon goods being ready before shipment.

Q3: How are the products transported internationally? A3: International shipping is generally handled via sea transport. Upon arrival, we utilize multimodal transport including rail and barge.

Q4: What are the warranty terms for the solar modules? A4: We provide a 10-year enhanced product warranty on materials and workmanship, along with a 25-year linear power output warranty.

Q5: What materials are used in these solar panels? A5: The modules are made from high-efficiency Monocrystalline Silicon and feature an anodized aluminum alloy frame for durability.

Q6: Are the solar panels certified for international use? A6: Yes, our products hold ISO, CE, and Rosh certifications, ensuring they meet global quality and safety standards.
